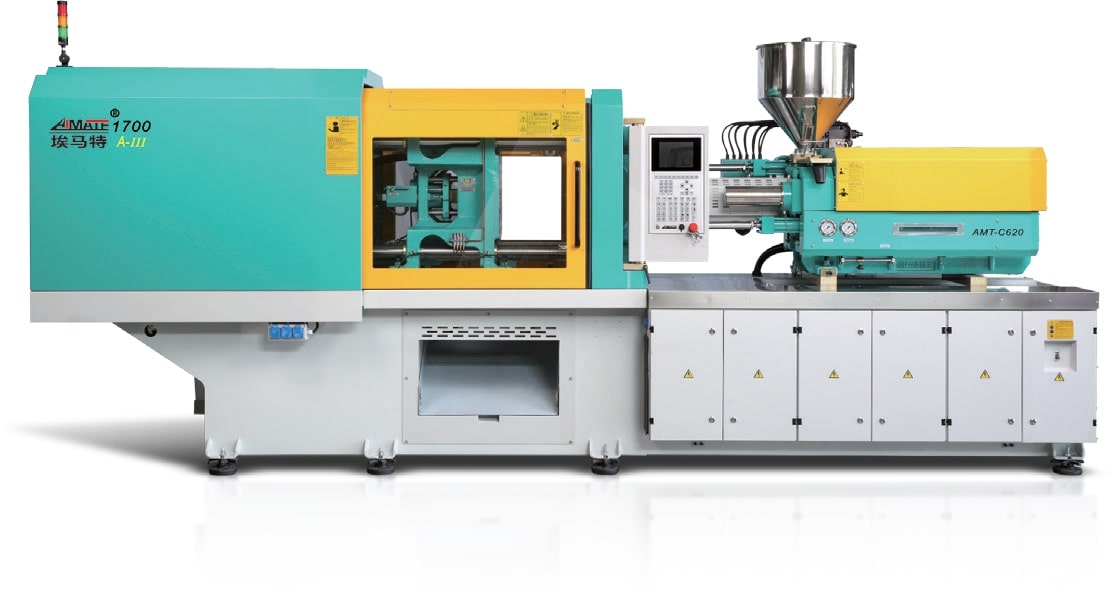

View Our Range of Stationery Injection Molding Machines

Clamping Unit

This is the working characteristic of our clamping unit. The efficient and energy-saving operating characteristics save you costs!

1

Automatic Mold Adjusting Device

With the automatic adjustment of mold thickness, the operator can effectively shorten the mold change time. The clamping unit is easily matched to different mold thicknesses.
2

Four Point Support

The mobile template adopts a box-type four-point support, and a Japanese THK roller rolling block is installed at the bottom to improve the linear accuracy of the mold, effectively control mold deformation, and reduce mold maintenance costs.
3

Five-point Crank

The one-piece ﬁve-point crank has a stable, multiple guide and support structure. Ensure completely symmetrical force application during operation and mold clamping. The clamping angle is large and the clamping force is closer to the center. The clamping force is larger, the locking axis is ﬁxed on the moving platen and the rear platen Customized installation to prevent damage to the template.
4

Ejection Device

The optimized ejection oil circuit can realize ejection stop and ejection vibration; when clamping the mold, the ejector pin turns on the unloading function to protect the mold from ejection and reduce the maintenance rate of the mold.
5

Cooling System

Cooling water drains are installed directly on the movable template and the fixed template to realize the coldest connection of the mold. The constant temperature function can be selected for the mold cooling system and can be set between 18℃ -30℃, which greatly improves the product cycle.
6

Lubrication System

It adopts an automatic lubrication system with built-in alarm function; equipped with two lubricating oil pumps, all joint movements are lubricated with thin oil to prevent oil circuit blockage; all linear motion points are lubricated with grease to improve lubrication and reduce lubricating oil waste; lubricating waste oil is concentrated Recycle.

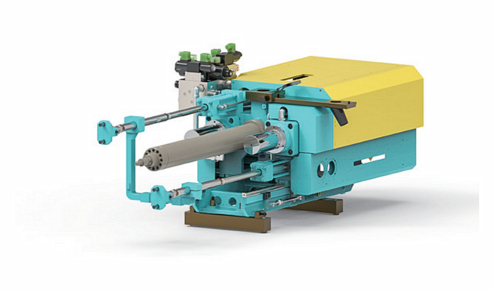

Injection Molding Unit

The optimized design of the injection unit provides higher precision and ensures higher stability. The screw length-to-diameter ratio is more reasonable, the plasticizing ability is stronger, and optional Equipped with special engineering plastic screws to ensure optimal product quality. all The one-piece guide rod seat is novel and beautiful, strong and reliable, and the injection is faster, more stable and Closer. Modular design fully meets personalized processing technology requirements. Provide customers with more choices.

01

Adjustable Rotating Shooting Platform

The overall modular design and three-point rotatable ejection platform can replace different barrel groups according to the different needs of customer products.
02

Injection Shift Cylinder

It adopts the large stroke and balanced design of upper and lower double cylinders, which can effectively solve problems such as material leakage, nozzle removal, and gate knocking.
03

Preforming Motor

It adopts high-speed oil motor, which has the characteristics of large output torque, wide speed range, high power-to-mass ratio, strong speed stability, and low noise.
04

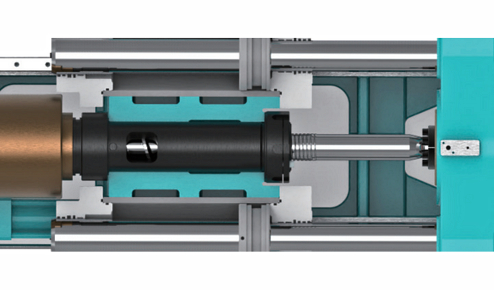

Double Injection Cylinder

Adopting a dual-cylinder high-speed and high-precision balanced design, the firing rate reaches 150-300mm/s; Position plus closed-loop control can effectively improve injection molding accuracy.
05

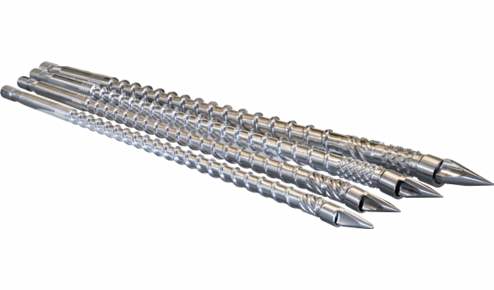

Barrel Module

Barrel modules with three different screw diameters compatible with the entire series are provided for each injection molding sheet;
06

Low Resistance, High Precision Design

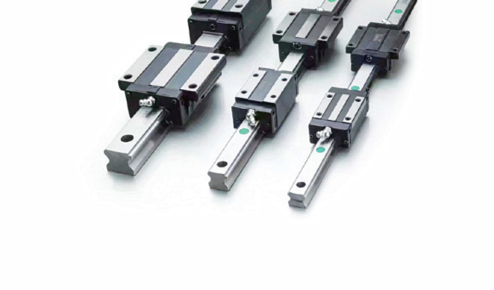

The injection moving part adopts linear guide rails to reduce the frictional resistance of component movement and shorten the injection cycle time.

Rack Unit

Improve the load-bearing capacity of the rack and further improve its stability

Wrapped design

The rack adopts a wrapped design concept. While ensuring the internal load-bearing capacity, the surroundings are wrapped and welded to further enhance the rack's load-bearing capacity and further improve its stability.
One-time processing and forming

The top is processed and formed in one step using a pentahedral machining center, which greatly ensures the accuracy of the moving template operation.
High rigidity

Improve the load-bearing capacity of the rack and further improve its stability

Control Unit

The configuration is 2~3 gears larger than other models of the same model, with stronger overload capacity and longer life.
Fast, accurate, and stable speed control mode;
Space vector modulation minimizes noise levels;
The fault record can store multiple recent alarm fault codes and the number of fault occurrences;
The field weakening speed-up function can greatly expand the operating speed of the motor.

01 Control Host
02 Human Machine Interface (HMI)
03 Network remote control (iNet)

● Various specifications, expansion modules can be added, and flexible configuration;

● It has hardware protection devices such as output point short circuit and overcurrent, and the hardware protection is in place, safe and reliable;

● The temperature adopts (9 material temperature + 1 oil temperature) AD analog input (8 channels) DA analog output 4 (A) + 4 (V).

● Large-capacity storage space to store multiple sets of process parameters, log records, etc.;

● Achieve arbitrary switching of voices in more than one country;

● Time tracking records include alarm records, monitoring records, parameter modification records, etc., to facilitate production management and inquiry.

● With diverse graphics libraries, customers can choose their own exclusive screens, operating modes, software tool support, and other designs to meet their customized needs.

iNet is a complete injection machine factory network management solution that assists plastic factory production and workshop management. Through network connection, it serves as a communication bridge between management and production sites; it also enables administrators to conduct global operations and provide New trends in customer management and controlling world trends are essential weapons for successfully moving toward enterprise informatization.

Hydraulic Unit

Hydraulic Valve

The hydraulic valve used adopts a large-diameter inlet valve: thus making the machine move faster, and has the advantages of significant reliability, long life, low noise and high response.
Hydraulic Safety Valve

Add a hydraulic safety valve to increase the safety performance of the machine, ensure that the equipment operates normally when the safety door is closed, and avoid personal injury and equipment damage caused by improper operation by the operator when the safety door is not closed.
Seals

Machine seals adopt imported brands: unique rubber formula, low friction, wear-resistant, long life, and high pressure holding capacity.

Servo Motor Series

Choose a motor brand with large torque, high balance accuracy, stable high-speed operation, low noise, small vibration, and reasonable structure;

The high-performance resolver decoding chip serves as motor speed and position feedback, increasing the stability and reliability of the drive.
